2008-2020 Toyota Sequoia Transfer Case Fluid Change How-To

This is a how-to for the 2008-2020 (Gen 2) Toyota Sequoia’s transfer case fluid change. This is also a pretty standard job, the only additional step is removing the small shield that covers the drain plug.

Items/Tools Required:

3T + jack & stands or ramps
12. 24, and 22mm socket
2qts of 75w85 GL5 Gear Oil (I chose Red Line 75w85 GL5 Gear Oil)
Fluid pump
Drain pan

Step 1: Get the car up & wheels off. Use appropriate jacks & stands, and the lug nuts are 22mm.

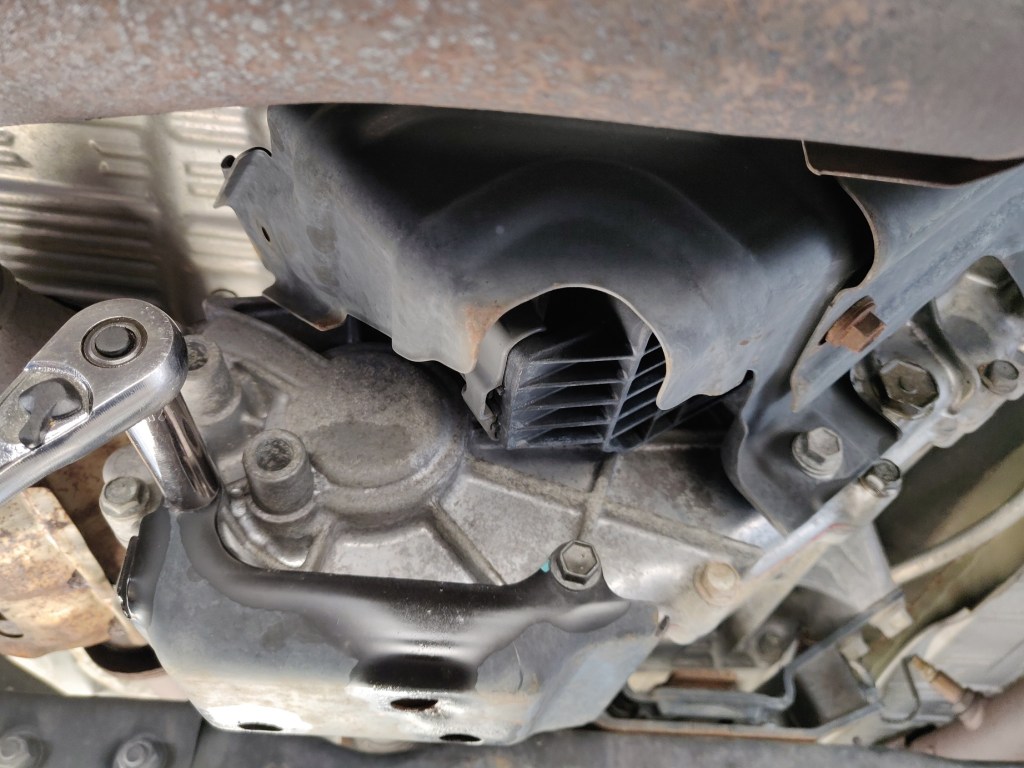

Step 2: Remove the skid tray. There are 4 12mm bolts holding this on, 2 in the front and 2 in the rear. The drain & fill plugs are in the rear, and you can see the fill plug in the upper right corner of this picture.

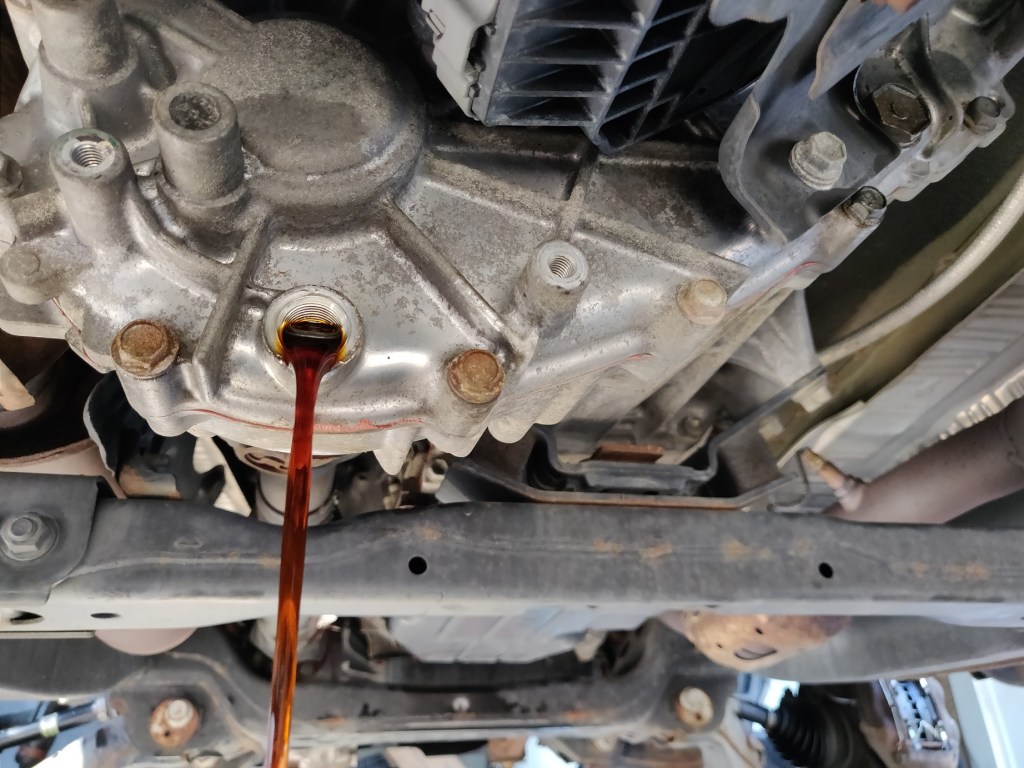

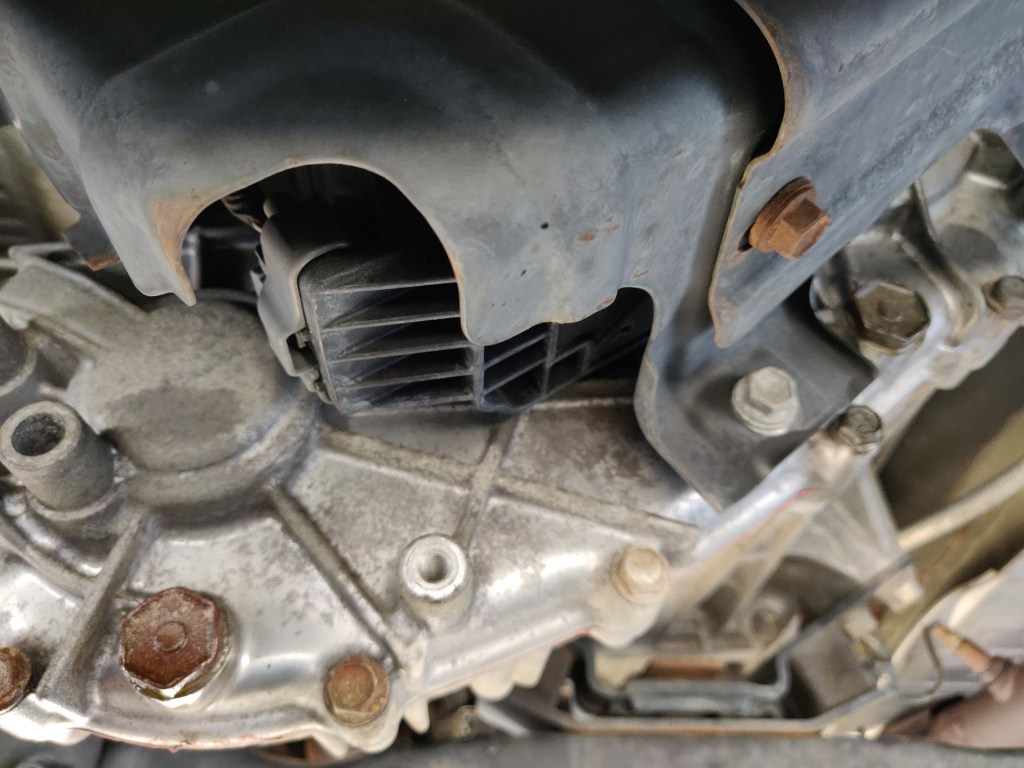

Step 3: With the skid tray off, crack the fill plug open and drain the fluid from the drain plug. Close the drain plug once fluid is finished draining.

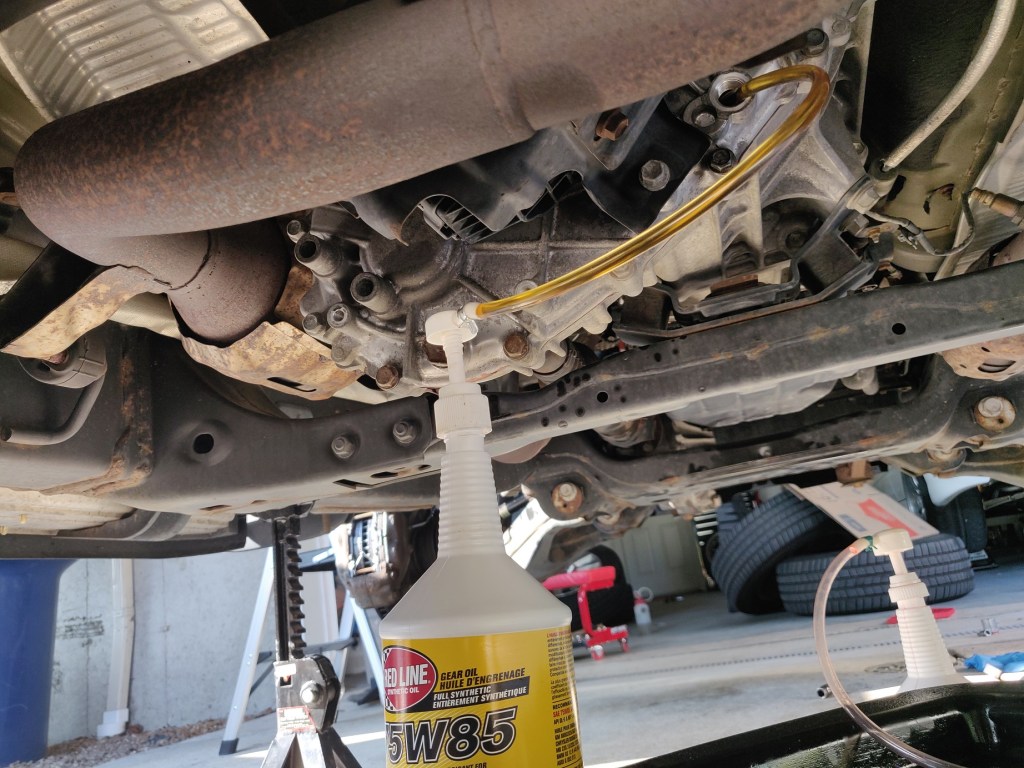

Step 4: Use a fluid pump to fill the transfer case until fluid starts dribbling out. Wait 5 minutes, and pump a few more times before closing it back up. It takes about 1.5-2qts of gear oil. All done!
