2019-2022 Hyundai Veloster N Camber Bolts How-To

This is a how-to for the 2019-2022 (Gen 2) Hyundai Veloster N camber bolts install. Super easy here. I was able to slide these out with almost no resistance, and likewise install the camber bolts with no issue. Supposedly the VN’s able to get nearly -2 degrees of negative camber with these, so the car will be going to an alignment shop soon.

Items/Tools Required:

Jack & Stands
19mm (lug nuts, camber bolt), 17mm (camber bolt nut)
Camber Bolts (I chose the SPC 81260)

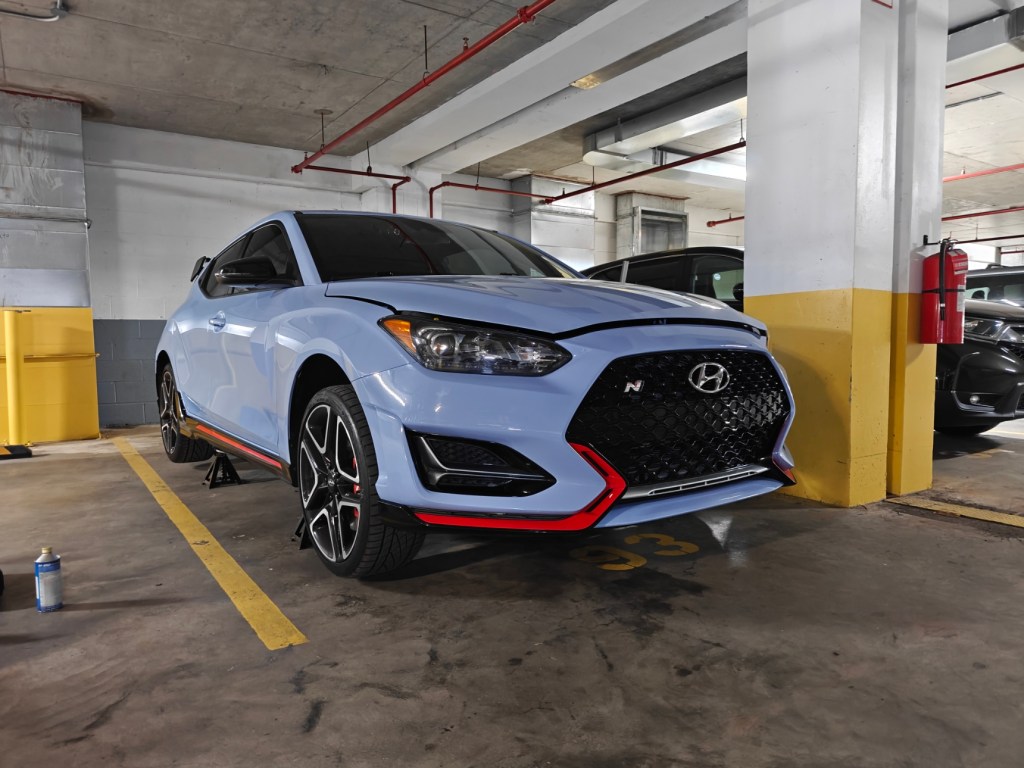

1. Car Up, wheels off.

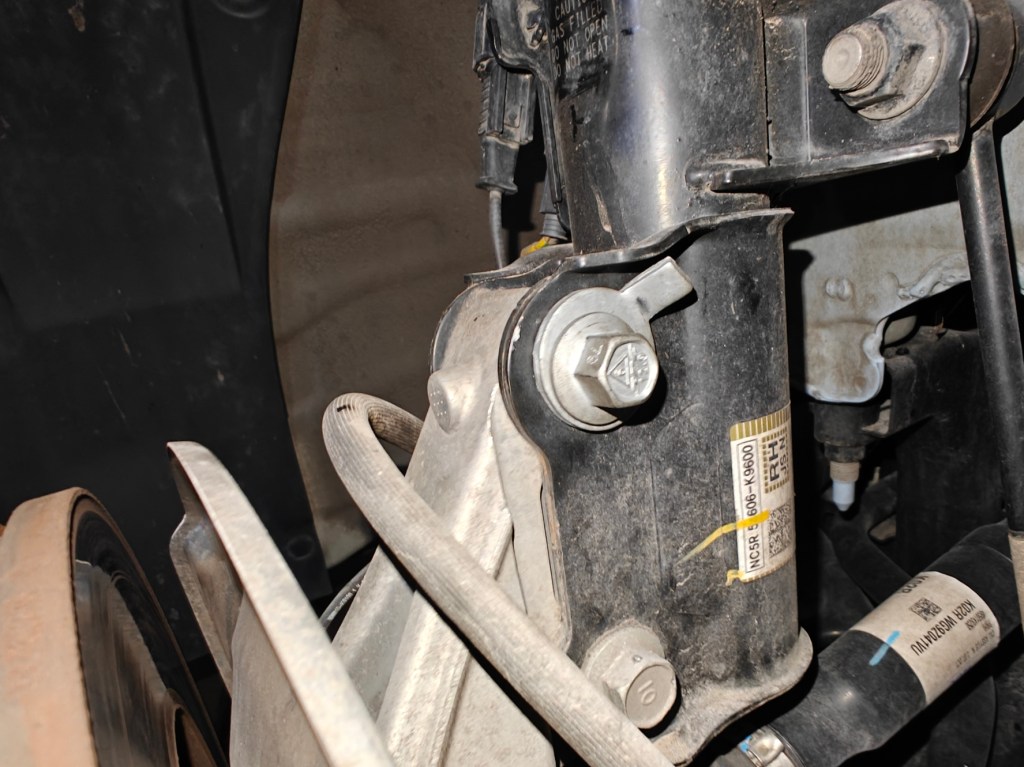

2. Didn’t get great pics of this – but super easy. You hold the bolt head with the 17mm and remove the nut with the 19mm.
3. The SPCs went on with a 16mm and a 17mm. Also instructed not to torque more than 79lbft, which is pretty low but went with it for now.
